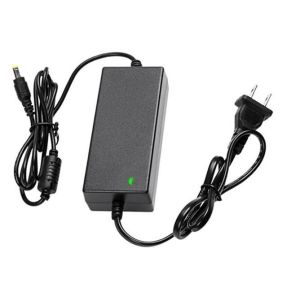

36V 3A AC to DC power Adapter 100 to 240VAC 108W Desktop switching power supply with UL
1. Input : AC 100-240V 50/60HZ
2. Output:36V 3A 108W
3. Plug option:AU EU UK US AUS CN
4. Inlet type: C6 C8 C14
5. AC/DC cable length:1.2M/1.5M
6. Size:138*60*34mm
7. DC Jack size:5.5*2.5mm or 5.5*2.1mm
8. MOQ:500pcs
9. Package:white box+carton
10. Delivery: 1-3 workdays for samples
11. Warranty:3 years
12. Certification:UL/CUL CE CB FCC GS TUV ROHS SAA
| Input Characteristics | Rated Voltage | 100~240Vac |
| Variation Range | 90-264Vac |
| Rated Frequency: | 50/60Hz |
| Variation Frequency | 47-63Hz |
| AC Current | 1.8Amps max |
| AC Leakage Current | 0.25mA |
| Output Characteristics | 36V 3A 108W |
| Ripple and Noise: | 120mV p-p |
| Turn- on Delay Time | 2Seconds Max.at 115Vac input and output Max.load |
| Rise time | 40 mS Max.at 115Vac input and output Max load |
| Hold-up Time | 5 mS Min.at 115Vac input and output Max.Load |
| Efficiency | 80% Min, At 115/230Vac input voltag |
| Output Overshoot/ Undershoot | 10% max |
| Protection | over voltage protection: | 120%min |
| over current protection: | 120%min |
| Short-circuit protection: | automatic recovery |
| Operation Temperature | 0°C to 40°C |
| Environment Requirements | Storage Temperature | -20°C to +80°C |
| Relative Humidity | 5%(0°C )~90%(40 °C)RH |
| Operating: | IEC 721-3-3 3M3 |
| Vibration | Transportation: | IEC 721-3-2 2M2 |
| Axes,10 cycles per axis. |
| Dropping Packed | 1M for wall mount type and 760mm for desktop type as above described |
| Reliability Requirements | Burn-in | 2 hours under normal input and 80%rated load at 30°C ±10°C |
| MTBF Qualification | at least 50,000 hours at 25°C |
| Mechanical Requirement | Enclosure | size: L138xW60xH34mm |
| Input Connector | C14 C6 C8 |
Packaging Details: Adapter Weight: 0.380KG/pc
Adapter Dimension : 142(L) x 62(W) x35(H) [mm]
White inner Box weight: 0.01KG
White inner Box Size: 155(L) x 85(W) x35(H) [mm]
Carton Weight: 1KG
Packing Dimension Carton: 495(L) x 420(W) x197(H) [mm]
Packing number: 50 PCS/CTN Total Weight:20 KG
Application:
E-POS,LCD screen,DVR,TVB,Vacuum cleaner,Projector,3D printer,3D pen etc
LED Lighting,Security monitoring,Semiconductor refrigeration and heating
Communication device, Medical device,Home appliance,Electric tools,Industrial equipment
Audio-visual products, digital products and Instrument series etc
Our Advantages:
professional produce team.
responsible sales representatives.
quickly and on-time delivery.
high quality and favorable price.
provide best service including before and after sales.
24H on-line to help you.
two year warranty.
